Do Not Throw It Away: 3D Printed Replacement Parts Can Save Your Appliances

A snapped freezer handle. A stripped food processor shaft. A cracked sensor bracket. Small plastic parts fail all the time, and for many appliances the manufacturer simply does not sell spares. That should not mean the whole unit goes to landfill.

The problem: no spares, no support

Once a product is a few years old, replacement parts often become unavailable in New Zealand or cost almost as much as a new appliance once shipping is added. We see this constantly with kitchen appliances, garage fittings and vehicle interior parts.

How we fix it, step by step

We take your broken part and either measure it directly or 3D scan it to capture the exact geometry. Then we rebuild it as a digital model, and this is the important part: we usually improve it. If the original snapped at a thin wall, the new one gets reinforced. If the original plastic went brittle from heat, we print the new one in a more suitable material like PETG.

Example 1: a beverage freezer door handle

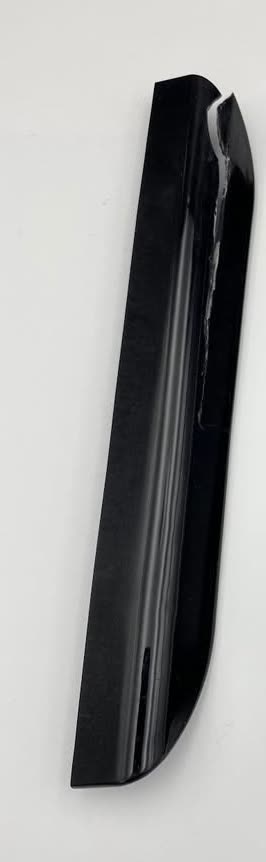

The starting point was a handle that had cracked right through and been glued back together more than once. No spare was available for the unit, and replacing a working freezer over one plastic part makes no sense.

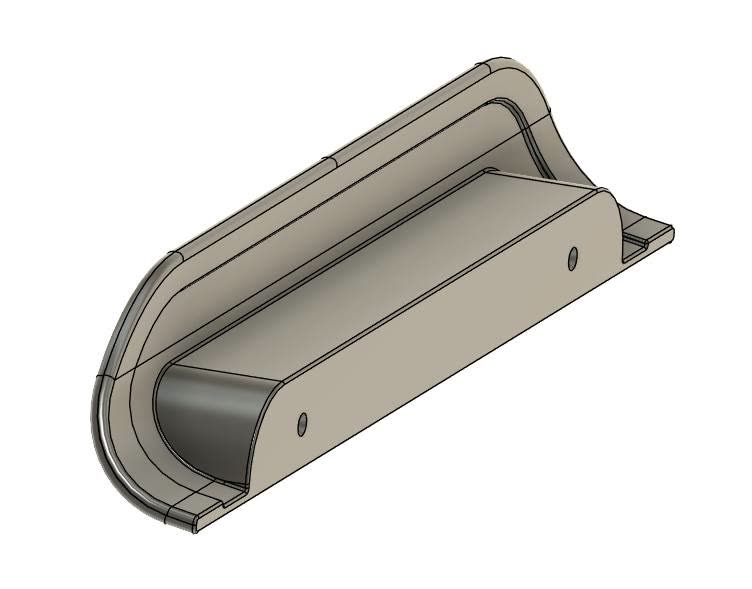

We modelled a replacement from the original, thickening the areas that had failed.

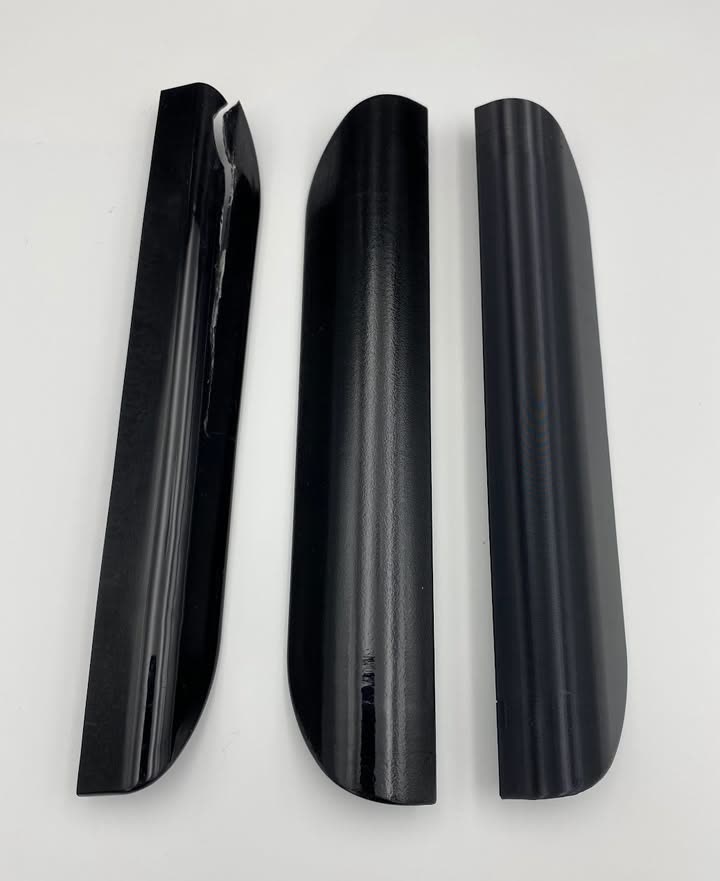

Printed in PETG, which handles the cold and the constant pulling far better than the original plastic did. Side by side, the difference in wall thickness is the whole point.

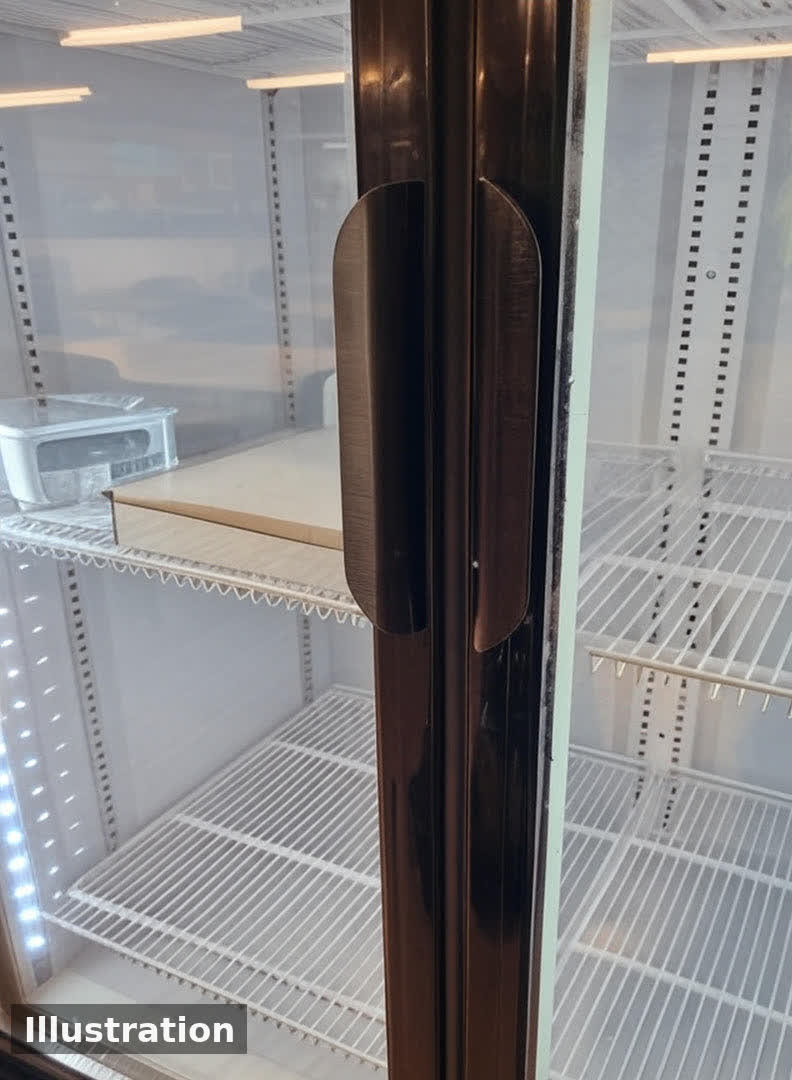

Fitted to the freezer, it works like the day the unit was new, and it is stronger than the part it replaced.

Another one from the same shelf: a food-safe drive shaft that fits an Anko 2 litre food processor, where no spare was available anywhere.

Example 2: a shower drain cover with a piece missing

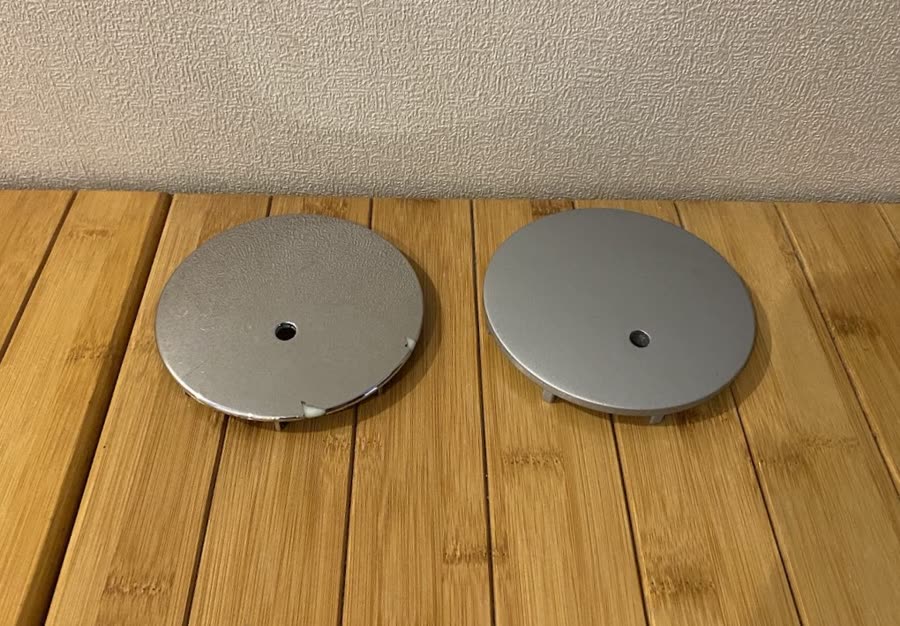

Bathroom fittings are a classic. The original chrome cover had a chunk broken out of the rim, and the only way to buy one was to replace the whole waste.

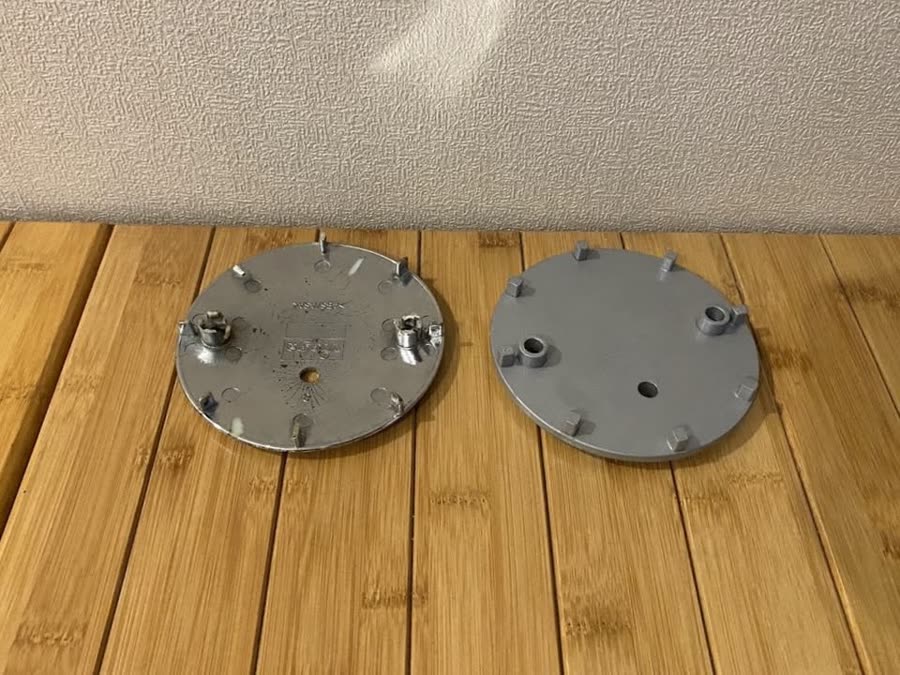

The replacement copies the clip geometry underneath exactly, so it snaps into the existing waste with nothing else changed.

It is not just appliances

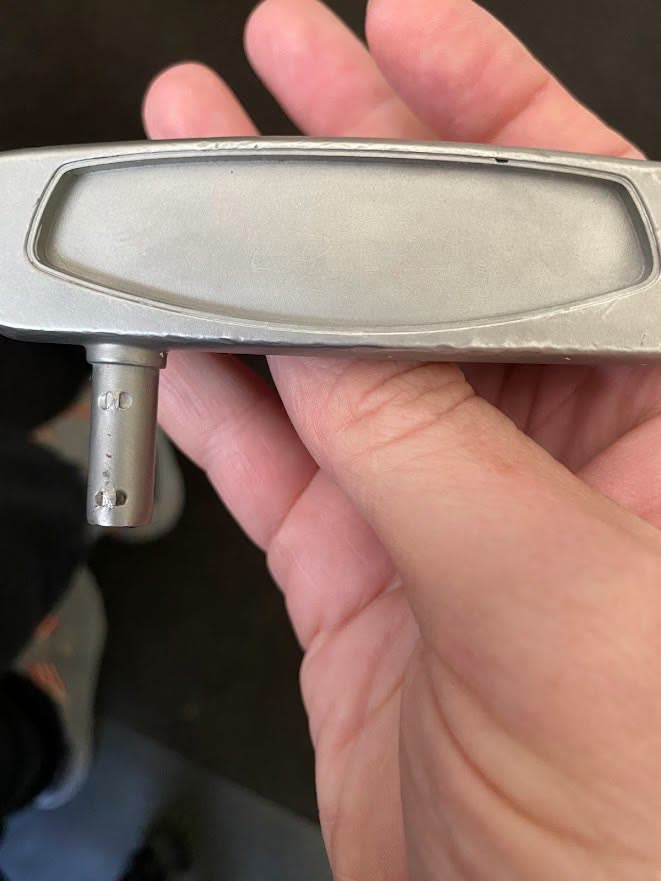

The same approach works on anything with a missing or worn plastic part. A customer brought in a putter with the face insert gone, and no replacement available anywhere.

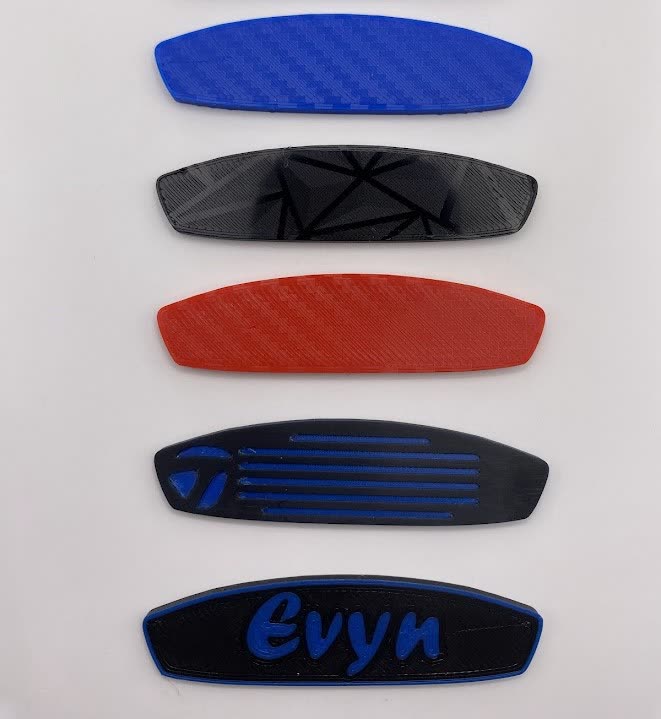

We measured the cavity, redrew the insert and printed it, then made a few colour options while we were at it, including a personalised one.

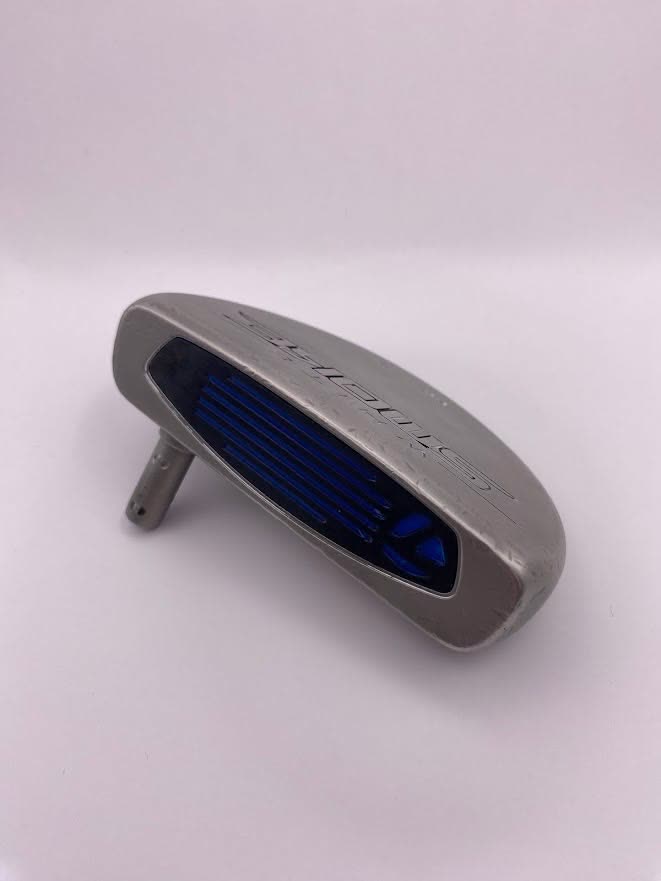

Fitted into the putter face, it plays like the original did.

What does it cost?

Most replacement parts land between NZ$10 and NZ$60 depending on size and complexity, which is usually a fraction of replacing the appliance. Every job is quoted up front before we start, with no obligation.

How to get started

Send us a photo of the broken part, ideally next to a ruler, and tell us what it came from. We will tell you honestly whether it is a good candidate for printing and what it would cost. If the part is beyond photographing, post it to us or drop it off in Tauranga.
